Product details

DESCRIPTION

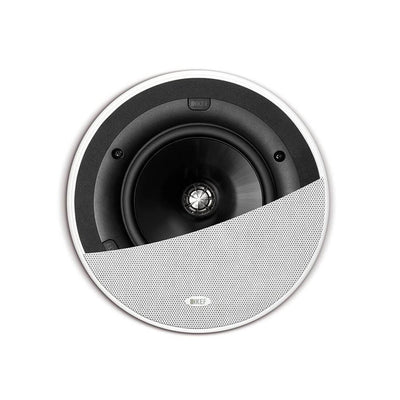

Ultra‑Thin Bezel Design with KEF’s Patented Uni‑Q Driver Array

The KEF Ci160QR is a stylish, high‑performance in‑ceiling speaker designed for seamless architectural integration and wide, even sound dispersion. Featuring KEF’s patented Uni‑Q driver array, the tweeter is placed at the acoustic center of the mid‑bass cone, allowing the entire speaker to act as a single point source. This creates KEF’s signature “sit anywhere” sound delivering consistent clarity and detail throughout the room.

With its Ultra‑Thin Bezel (UTB) design, the Ci160QR blends effortlessly into any ceiling, offering the slimmest visible rim possible. Its moisture‑resistant construction and secure screw‑down clamping system make it suitable for a wide range of environments, including kitchens, living rooms, home theaters, and semi‑humid spaces.

The Ci160QR is part of the KEF Ci‑Q Series engineered for premium performance, elegant aesthetics, and installation flexibility.


SPECIFICATION

Nominal Impedance

  • 8 Ohm

Sensitivity

  • 89 dB (2.83V / 1m)

Crossover Frequencies

  • 3.0 kHz

Frequency Response

  • 38 Hz – 34 kHz (±6 dB)
    (2π / open‑backed configuration)

Drive Units

  • LF: 160 mm (6.5 in.)
  • HF: 19 mm (0.75 in.) aluminium dome tweeter

Recommended Amplifier Power

  • 10 – 125 W

Dimensions

Product External Dimensions (H × W × D)

  • Diameter: 234.6 mm (9.24 in.)
  • Depth: 98 mm (3.86 in.)

Cut‑Out Dimensions

  • Diameter: 196 mm (7.71 in.)

Mounting Thickness

  • Maximum Ceiling Thickness: 36 mm (1.42 in.)
  • Minimum Ceiling Thickness: 6 mm (0.24 in.)

Mounting Depth From Surface

  • Product Only: 91 mm (3.58 in.)

Optional Rough‑In Frame

  • RIF160R

Net Weight

  • 2.05 kg (4.51 lbs)

Unit Measurement

  • Piece

Document Downloads

  • Manual
  • Individual Information Spec Sheet
  • Architectural Speaker Brochure
  • Product Group Spec Sheet
  • Minimum Cabinet Volume Chart
  • Cutout Template
  • EASE GLL Data
  • Product Drawing
  • Selection & Setup Guide
  • Architectural Speaker Accessory Guide

Remarks

  • Features KEF’s patented Uni‑Q driver array for wide, even sound dispersion.
  • KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
