Product details

DESCRIPTION

Premium QORATECH‑Style Product Page Introduction

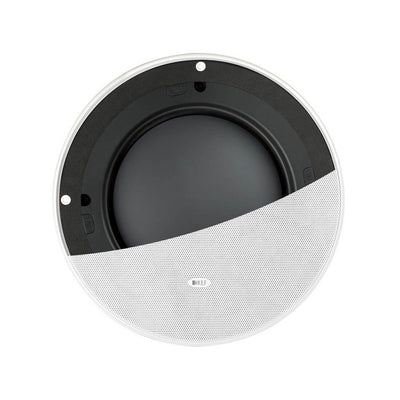

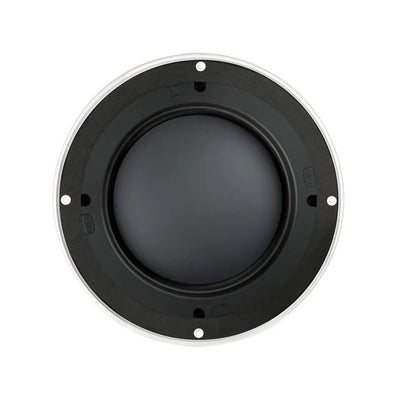

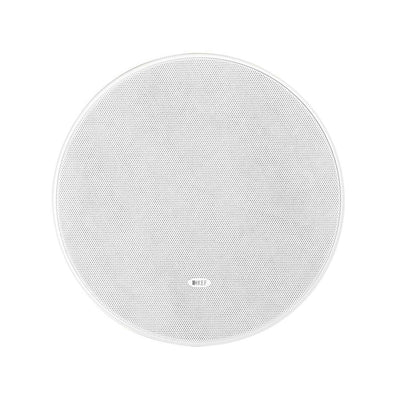

The KEF Ci200TRb is a breakthrough in ultra‑slim architectural bass performance, engineered for installations where space is extremely limited but high‑fidelity sound is non‑negotiable. Featuring a powerful 200mm (8‑inch) subwoofer derived from KEF’s acclaimed T Series ultra‑thin driver technology, the Ci200TRb delivers deep, impactful bass from a form factor that fits where traditional subwoofers simply cannot.

With a mounting depth of less than 59 mm (2⅜ in.), the Ci200TRb is purpose‑built for luxury high‑rise apartments, modern architectural spaces, and premium distributed audio systems where cavity depth is restricted. Despite its slim profile, it produces bass performance that defies expectations, bringing cinematic low‑frequency energy and musical warmth to any room.

In passive mode, the Ci200TRb pairs seamlessly with KEF’s Ci160TR (round) or Ci160TS (square) ultra‑thin speakers, adding rich low‑end extension to music and multi‑room audio systems. When used in active mode with the KEF KASA500 System Amplifier, it transforms into a high‑output architectural subwoofer capable of delivering the dynamic, room‑shaking bass required for today’s immersive home theatres.



SPECIFICATION

Acoustic Performance

  • Nominal ImpedanceStereo Mode: 2 × 8ΩMono Mode: 16Ω
  • Sensitivity87 dB (2.83V/1m)
  • Frequency Response42 Hz – 120 Hz (Passive mode)32 Hz – 120 Hz (With KASA500)
  • Drive UnitsLF: 200 mm (8 in.)
  • Recommended Amplifier Power10–125 W (Passive mode)KASA500 (Active mode)

Physical Specifications

  • External DimensionsDiameter: 290 mm (11.42 in.)Depth: 63 mm (2.48 in.)
  • Cut‑Out DimensionsDiameter: 240 mm (9.45 in.)
  • Mounting ThicknessMaximum Ceiling Thickness: 26 mm (1.03 in.)Minimum Ceiling Thickness: 4 mm (0.16 in.)
  • Mounting Depth From Surface59 mm (2.32 in.)
  • Net Weight1.7 kg (3.75 lbs)
  • Unit MeasurementPiece

Optional Accessories

  • Rough‑In Frame: RIF200R
  • Rear Enclosure: RNC200R

Design. Sound. Smart Living
