Product details

DESCRIPTION

Ultra‑Shallow Depth. Wide, Even Sound. Uni‑Q Performance.

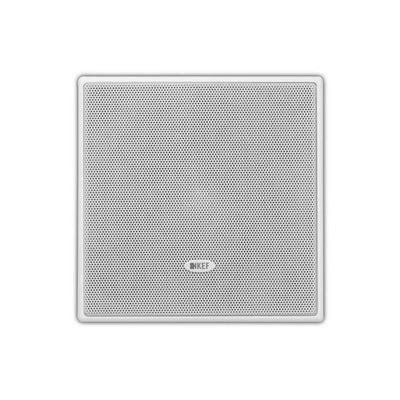

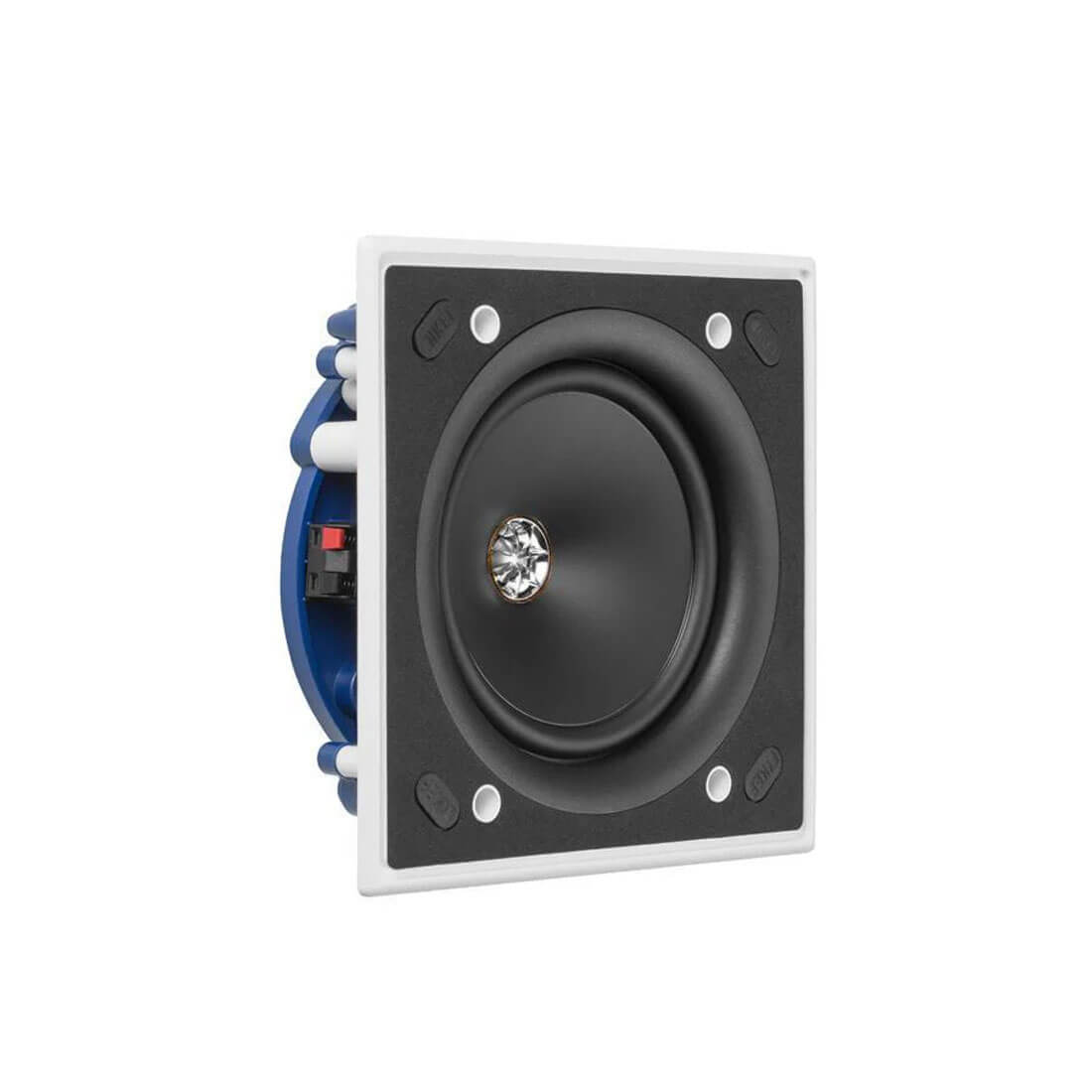

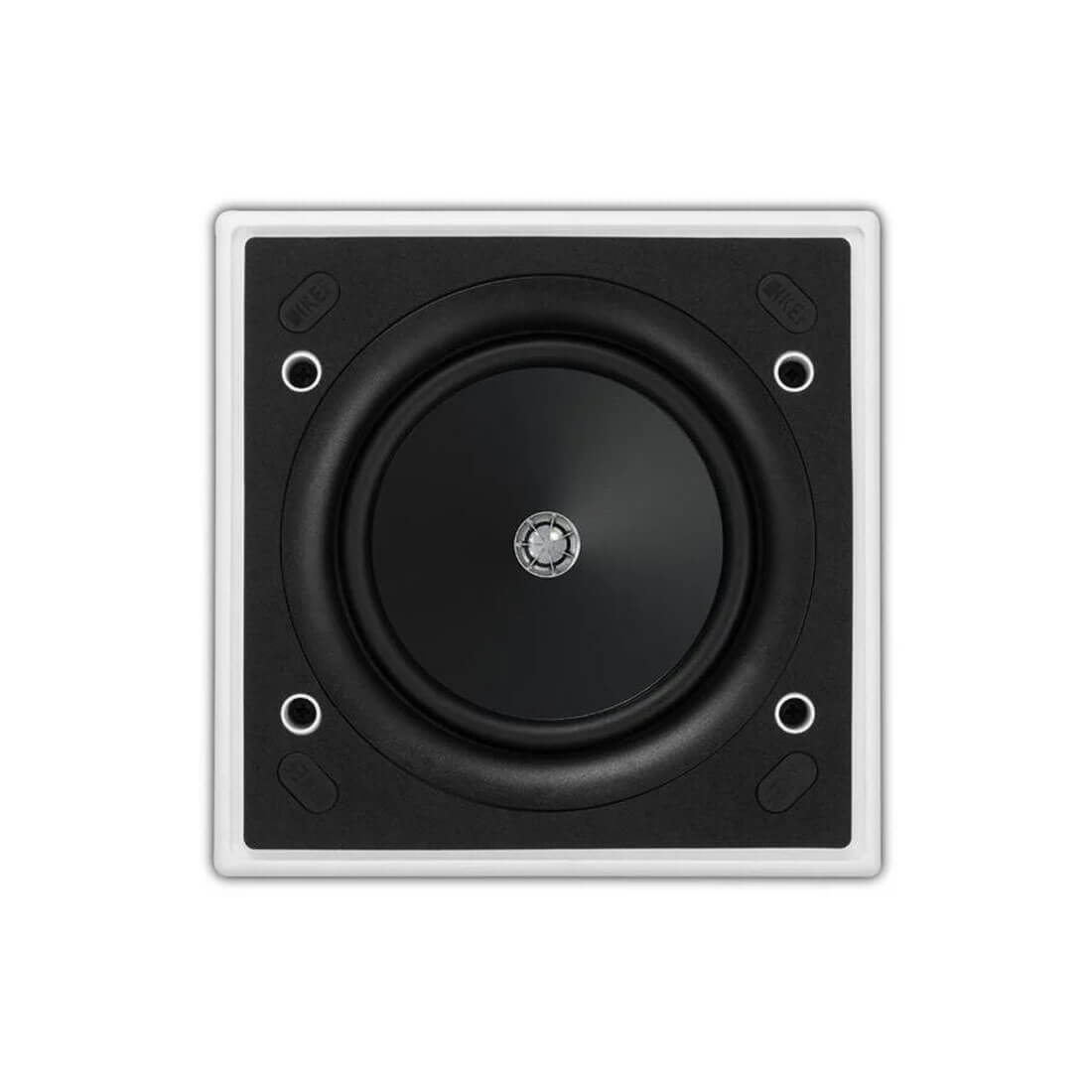

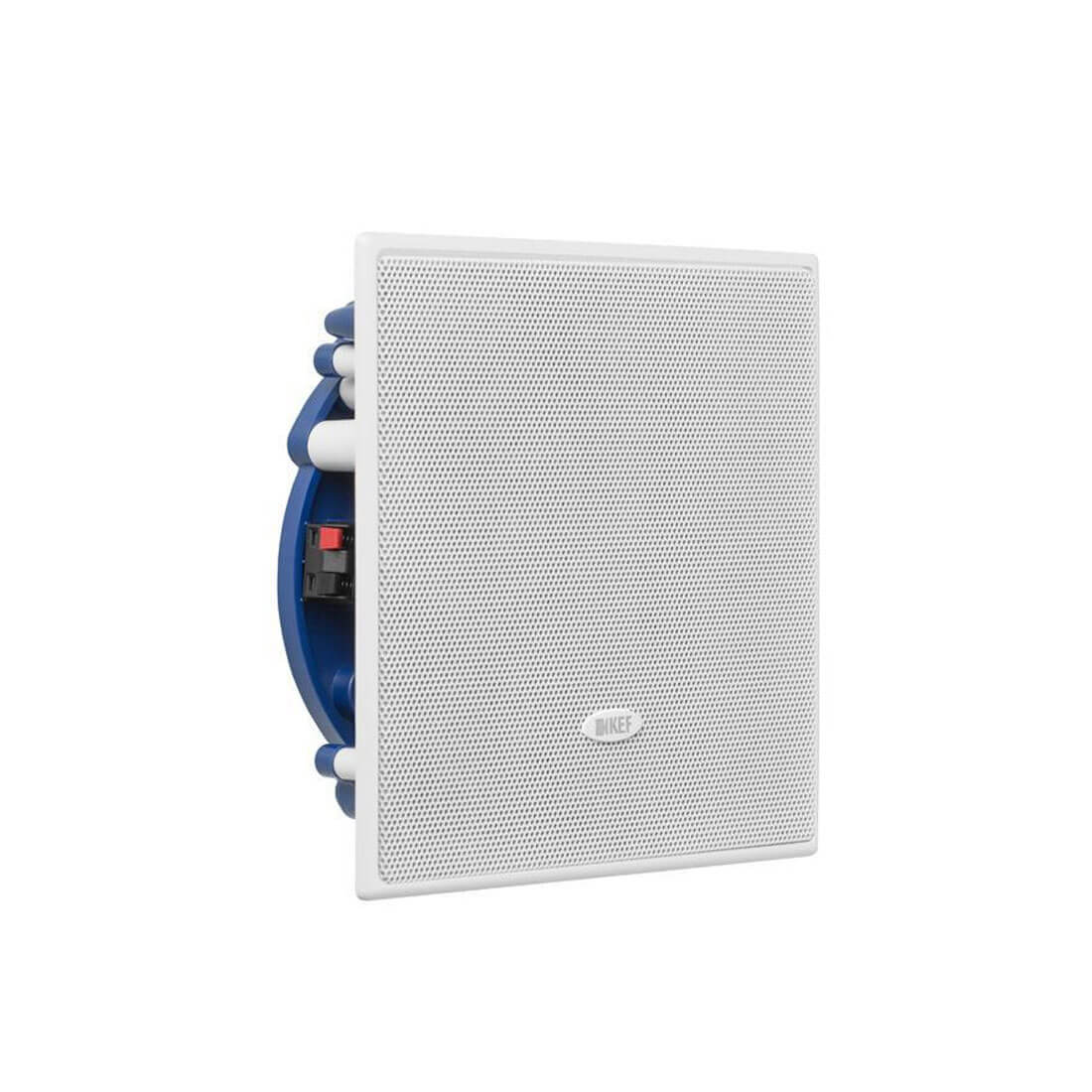

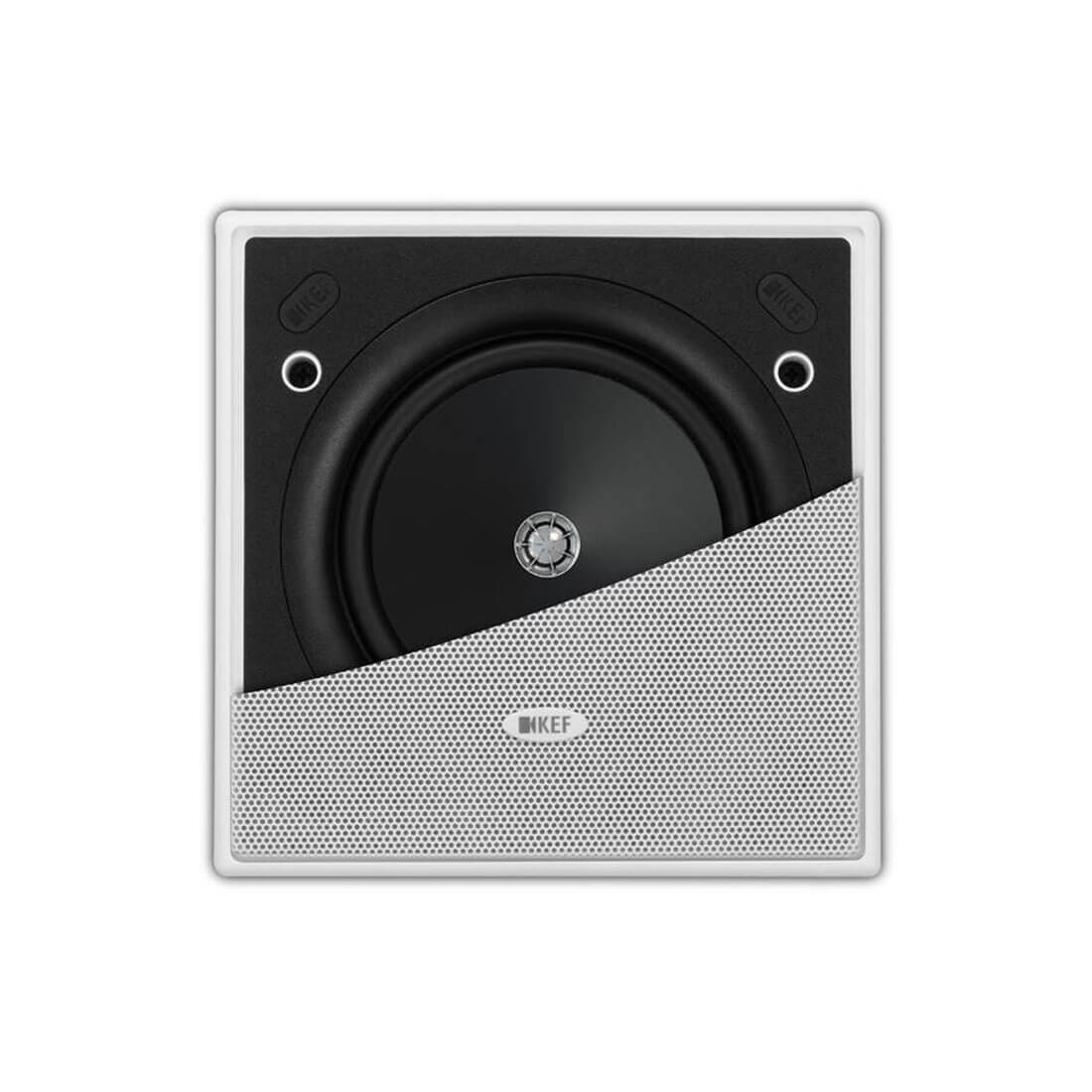

The KEF Ci130.2CS is a high‑performance in‑wall speaker engineered for installations where space is limited but sound quality cannot be compromised. Featuring KEF’s patented Uni‑Q driver array, the tweeter is positioned at the acoustic center of the mid‑bass cone, allowing the entire speaker to act as a single point source. This delivers KEF’s signature “sit anywhere” sound wide, even dispersion with exceptional clarity throughout the room.

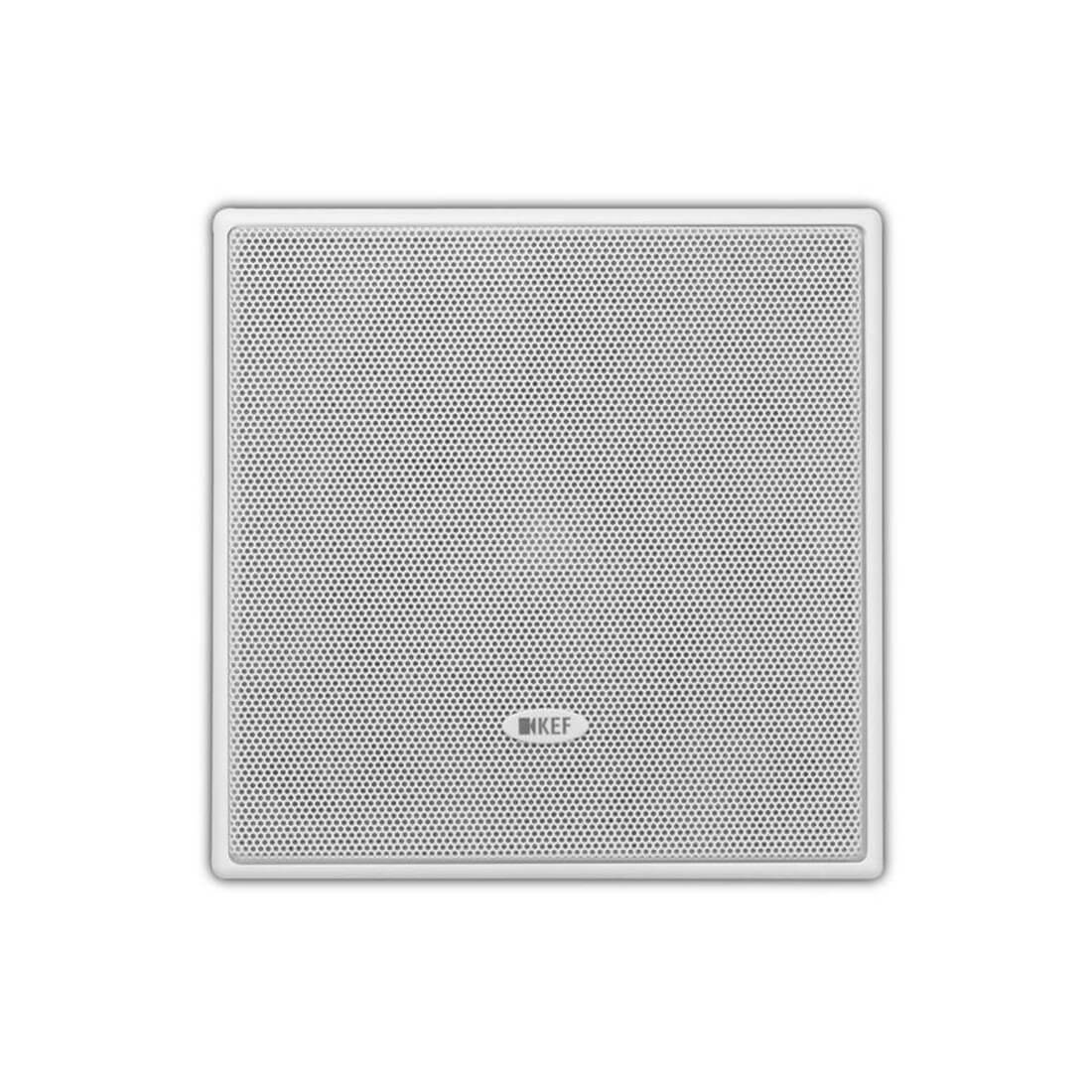

Designed with an extremely shallow mounting depth, the Ci130.2CS fits where many competing speakers simply cannot. Its Ultra‑Thin Bezel (UTB) and flat, paintable grille ensure seamless architectural integration, blending effortlessly into any modern interior.

Weather‑resistant materials and UV‑protected components make the Ci130.2CS suitable for a variety of environments, including living rooms, bedrooms, hallways, kitchens, and semi‑humid spaces.

A perfect entry point into KEF’s custom‑installation lineup, the Ci130.2CS combines discreet aesthetics with impressive acoustic performance.


SPECIFICATION

Nominal Impedance

  • 8 Ohms

Sensitivity

  • 87 dB (2.83V / 1m)

Frequency Response

  • 52 Hz – 20 kHz (±6 dB)
    (Open‑backed configuration)

Crossover Frequency

  • 2.5 kHz

Drive Units

  • LF: 130 mm (5.25 in.) Uni‑Q driver
  • HF: 16 mm (0.6 in.) tweeter

Recommended Amplifier Power

  • 10 – 80 W

Dimensions

Product External Dimensions (H × W × D)

  • 184 × 184 × 81 mm
  • (7.24 × 7.24 × 3.19 in.)

Cut‑Out Dimensions (H × W)

  • 158 × 158 mm
  • (6.22 × 6.22 in.)

Mounting Thickness

  • Maximum Ceiling Thickness: 24 mm (0.95 in.)
  • Minimum Ceiling Thickness: 6 mm (0.24 in.)

Mounting Depth From Surface

  • 77.1 mm (3.03 in.)

Optional Accessories

  • Rough‑In Frame: RIF130S
  • Rear Enclosure: RNC130S

Net Weight

  • 1.2 kg (2.7 lbs)

Unit Measurement

  • Piece
