DESCRIPTION

The Denon AVR-X4800H is a high-performance 9.4-channel AV receiver designed to deliver an immersive home theater experience. Support for advanced audio and video formats ensures exceptional sound and visual quality for your entertainment setup.

Key Features:

  • Powerful Amplification: Delivers 125 watts per channel into 8 ohms, providing robust and transparent audio performance.
  • Advanced 8K HDMI Connectivity: Equipped with seven HDMI inputs and three outputs, all supporting 8K/60Hz and 4K/120Hz pass-through, HDR10+, Dolby Vision™, and Dynamic HDR for superior video quality.
  • Immersive 3D Audio: Supports Dolby Atmos®, DTS: X®, IMAX Enhanced, and Auro-3D®, delivering a three-dimensional audio experience that envelops listeners.

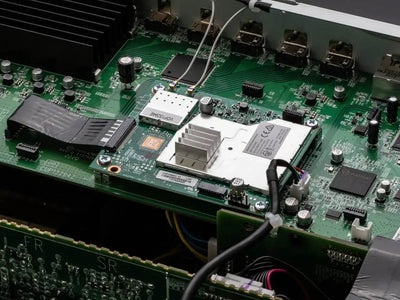

  • HEOS® Built-In: Allows wireless music streaming from various services and enables multi-room audio with compatible HEOS-enabled speakers.
  • Room Calibration: Features Audyssey MultEQ XT32 for precise room calibration, optimizing sound quality based on your room's acoustics.

For more information or to purchase the Denon AVR-X4800H, visit Qoratech's product page.

SPECIFICATION

Channels

  • Channels: 7.2
  • Object‑Based Configuration: 5.2.2

Power Output per Channel

2‑Channel Driven:

  • 95 W at 8 Ohms / 20 Hz–20 kHz / 0.08% THD
  • 125 W at 6 Ohms / 1 kHz / 0.7% THD

1‑Channel Driven:

  • 185 W at 6 Ohms / 1 kHz / 10% THD

DTS Compatibility

  • DTS Neural:X
  • DTS Virtual:X
  • DTS‑HD Master Audio
  • DTS:X

Dolby Compatibility

  • Dolby Atmos
  • Dolby Atmos Height Virtualization
  • Dolby Surround
  • Dolby TrueHD

HDR & Video

  • HDR Support: HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma
  • Pass‑Through Support: 8K
  • Upscaling: No
  • GUI: Yes

Rear A/V Inputs

  • 3 × HDMI 2.1
  • 3 × HDMI
  • 2 × Optical TOSLINK
  • 1 × Digital Coaxial
  • 4 × Stereo RCA
  • 1 × Stereo RCA (Phono MM) with Ground Screw

Front I/O

  • 1 × USB‑A Input/Output
  • 1 × 1/4″ (6.35 mm) Headphone Output
  • 1 × 1/8″ (3.5 mm) Setup Mic Input

Wireless Connectivity

  • Wi‑Fi: Yes
  • Bluetooth: Yes

Tuner

  • Tuner Type: AM, FM

Amplifier Section

  • Channels: 7.2
  • Object‑Based Configuration: 5.2.2

Power Output per Channel:

  • 95 W at 8 Ohms / 20 Hz–20 kHz / 0.08% THD
  • 125 W at 6 Ohms / 1 kHz / 0.7% THD
  • 185 W at 6 Ohms / 1 kHz / 10% THD

Audio Processing

  • DTS Compatibility: DTS Neural:X, DTS Virtual:X, DTS‑HD Master Audio, DTS:X
  • Dolby Compatibility: Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Surround, Dolby TrueHD
  • Auro 3D Support: No
  • Upmixing Technology: Dolby Surround, DTS Neural:X
  • Supported File Formats: 2.8 MHz DSD, 5.6 MHz DSD, AAC, ALAC, FLAC, MP3, WAV, WMA (via USB)

Video

  • HDR Support: HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma
  • Pass‑Through: 8K
  • Upscaling: No
  • GUI: Yes

Connectivity

Rear A/V Inputs

  • 3 × HDMI 2.1
  • 3 × HDMI
  • 2 × Optical TOSLINK
  • 1 × Digital Coaxial
  • 4 × Stereo RCA
  • 1 × Stereo RCA (Phono MM) with Ground Screw

Rear A/V Outputs

  • 2 × HDMI
  • 2 × RCA Subwoofer Pre‑Out
  • 1 × Stereo RCA Zone 2 Pre‑Out

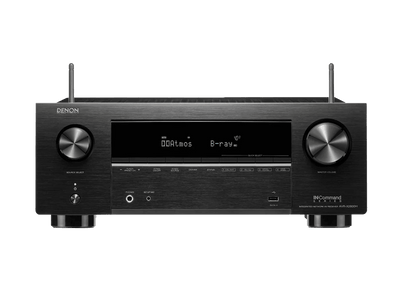

Front I/O

  • 1 × USB‑A Input/Output
  • 1 × 1/4″ (6.35 mm) Headphone Output
  • 1 × 1/8″ (3.5 mm) Setup Mic Input

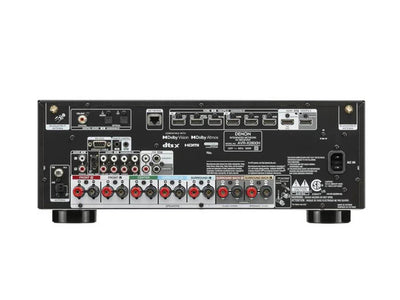

Other Rear I/O

  • 2 × Bluetooth/Wi‑Fi Coaxial F‑Type I/O
  • 1 × FM Coaxial F‑Type Input
  • 1 × AM Block Input
  • 1 × RJ45 Ethernet I/O
  • 1 × 1/8″ (3.5 mm) Remote Input
  • 1 × 1/8″ (3.5 mm) Remote Output
  • 1 × DE‑9 (RS‑232C) Input

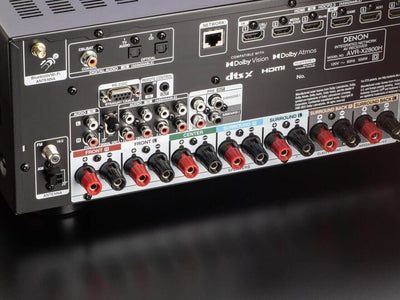

Speaker I/O

  • 7 × Binding Post Pairs (Front, Center, Rear, Rear Surround)

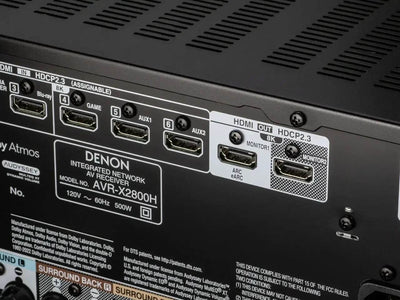

HDMI Features

  • HDCP Support: Version 2.3
  • HDMI Compression Modes: 4K120AB / 8K60AB
  • ARC/eARC: Yes
  • HDMI CEC: Yes

Other

  • Media Card Slot: No
  • Bi‑Amp Capability: Yes

Wireless Audio Protocols

  • AirPlay 2
  • HEOS
  • Roon Ready
  • Spotify Connect

Control

  • External Control Support: Android/iOS Control App
  • Virtual Assistants: Apple AirPlay, Alexa, Google Assistant, Josh.ai, Siri

Tuner Section

  • Tuner Type: AM, FM

Power

  • Active: 500 W
  • No Sound (ECO On): 35 W
  • No Sound (ECO Off): 75 W
  • Standby: 0.1 W
  • CEC Standby: 0.5 W
  • Network Standby: 2 W

Physical

  • Dimensions (Antenna Removed): 17.1 × 6.6 × 13.0 in / 43.4 × 16.8 × 33.0 cm
  • Dimensions (Antenna Up): 17.1 × 9.3 × 13.4 in / 43.4 × 23.6 × 34.0 cm
  • Weight: 21 lb / 9.5 kg

Packaging

  • Package Weight: 25.375 lb
  • Box Dimensions (L × W × H): 21.6 × 17 × 9.8 in
