DESCRIPTION

Large‑Format Uni‑Q Performance with Ultra‑Thin Bezel Design

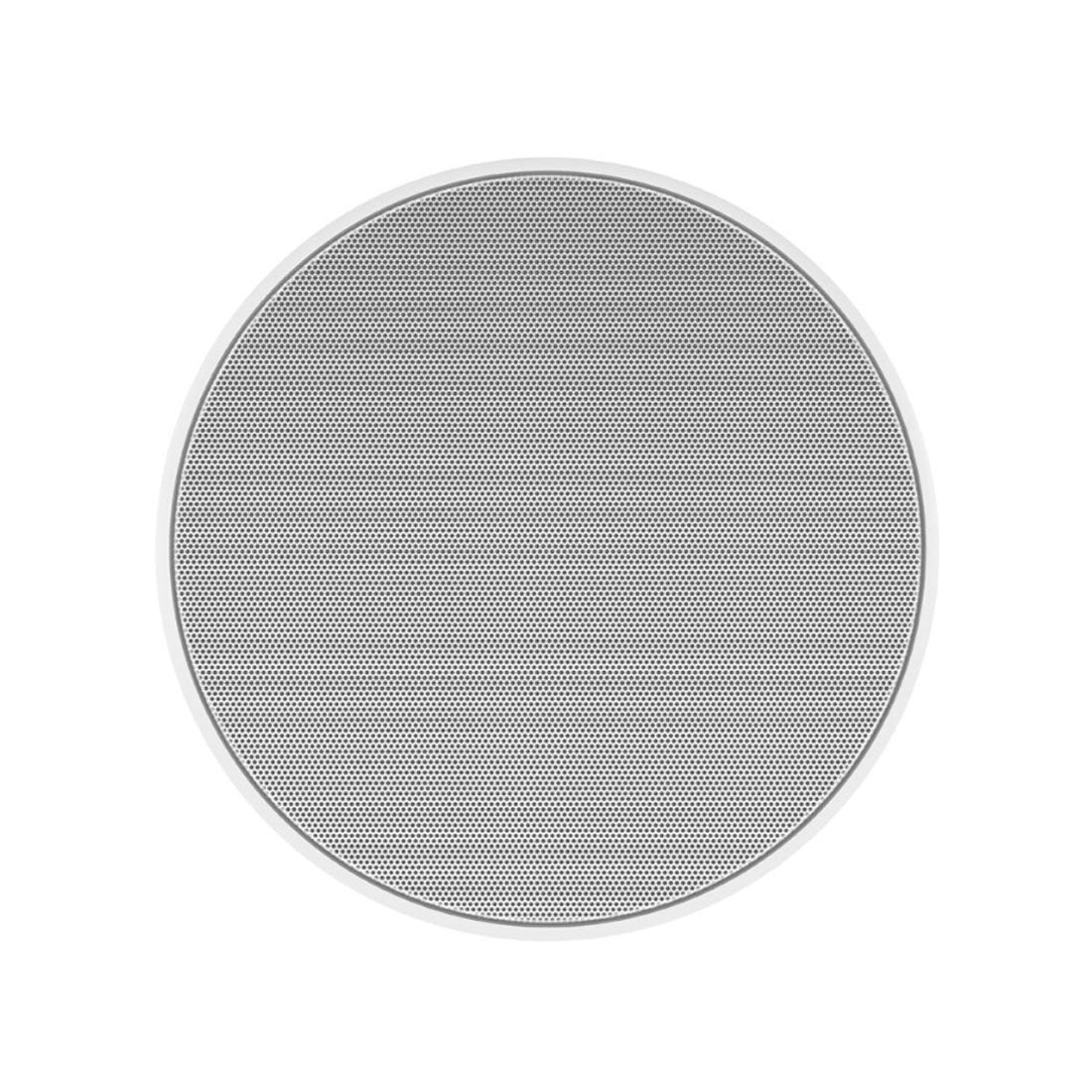

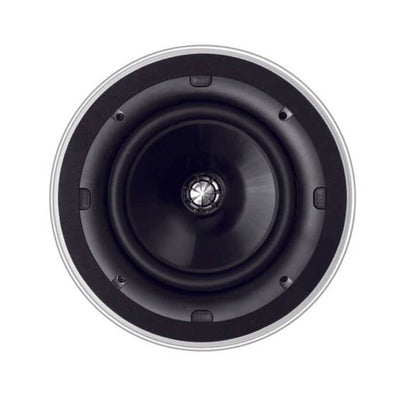

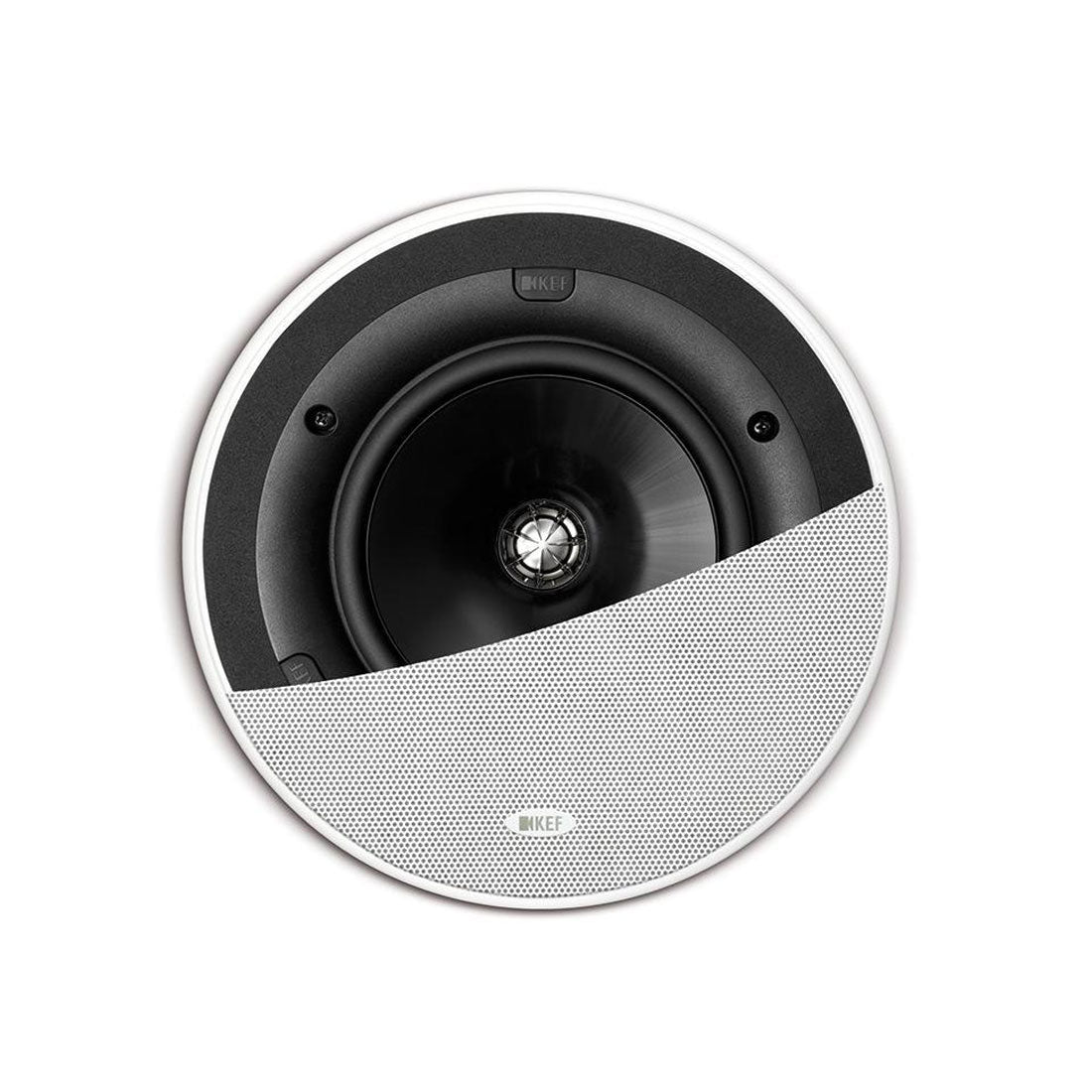

The KEF Ci200QR is a powerful, large‑format in‑ceiling speaker engineered for high‑fidelity sound and seamless architectural integration. Featuring KEF’s patented Uni‑Q driver array, the tweeter sits at the acoustic center of the mid‑bass cone, allowing the entire speaker to function as a single point source. This creates KEF’s signature “sit anywhere” sound delivering wide, even dispersion and exceptional clarity throughout the room.

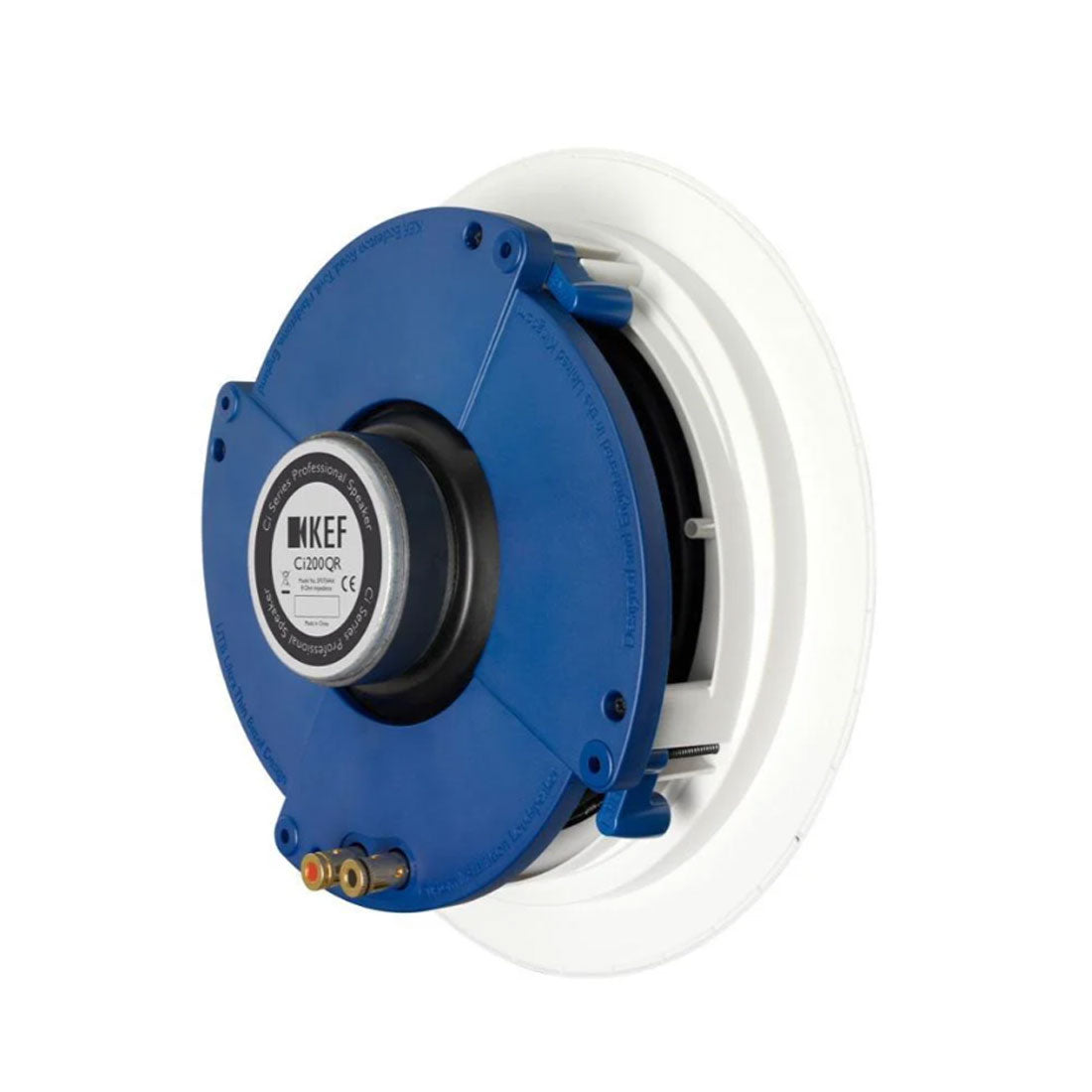

With its Ultra‑Thin Bezel (UTB) design, the Ci200QR blends effortlessly into any ceiling, offering a clean, modern aesthetic with the slimmest visible rim possible. Its moisture‑resistant construction and secure screw‑down clamping system make it suitable for a wide range of environments, including living rooms, home theaters, kitchens, and semi‑humid spaces.

The Ci200QR is the ideal choice when you need more output, deeper bass, and a larger soundstage than the Ci160QR perfect for medium‑to‑large rooms where premium performance is essential.

SPECIFICATION

Nominal Impedance

  • 8 Ohm

Sensitivity

  • 90 dB (2.83V / 1m)

Frequency Response

  • 35 Hz – 34 kHz (±6 dB)
    (2π / open‑backed configuration)

Drive Units

  • LF: 200 mm (8.0 in.)
  • HF: 25 mm (1.0 in.) aluminium dome tweeter

Recommended Amplifier Power

  • 10 – 150 W

Dimensions

Product External Dimensions (H × W × D)

  • Diameter: 289.6 mm (11.4 in.)
  • Depth: 109.8 mm (4.33 in.)

Cut‑Out Dimensions

  • Diameter: 240 mm (9.45 in.)

Mounting Thickness

  • Maximum Ceiling Thickness: 37 mm (1.46 in.)
  • Minimum Ceiling Thickness: 6 mm (0.24 in.)

Mounting Depth From Surface

  • Product Only: 103.3 mm (4.07 in.)

Optional Rough‑In Frame

  • RIF200R

Net Weight

  • 2.4 kg (5.28 lbs)

Unit Measurement

  • Piece
